Ultimate Guide to A Panel Antenna

28 Apr, 2023

Panel antennas are a popular type of antenna that is widely used in the telecommunications industry. They offer a range of benefits and are often the go-to choice for those looking for reliable and efficient wireless connectivity. In this article, we will provide an ultimate guide to panel antennas, to let you get an understanding of the panel antennas.

What is A Panel Antenna?

The panel antenna is a commonly seen device in the Ultra high frequencies or UHF. Due to the size and directional property, the panel antenna is usually used for cellular/mobile base stations or wireless networking. And, the panel antenna is divided into indoor panel antenna and outdoor panel antenna.


The internet antenna panel consists of multiple "bays" which are connected in parallel to increase received signal strength. And, each bay is constructed with an individual dipole placed before a shared reflector.

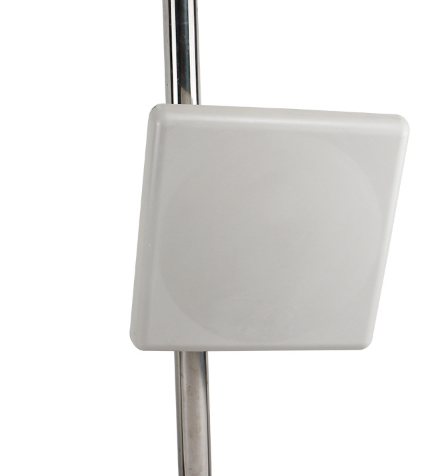

Panel Antenna

Panel Antenna

What is A MIMO Panel Antenna?

A MIMO panel antenna is a type of antenna that is used in wireless communication systems, particularly those that utilize Multiple Input Multiple Output (MIMO) technologies. MIMO is a wireless technology that allows multiple antennas to transmit and receive data simultaneously, which increases data throughput and improves overall network performance.


The mimo panel antenna consists of several antenna elements which are used to transmit and receive simultaneously to improve link speed and capacity.

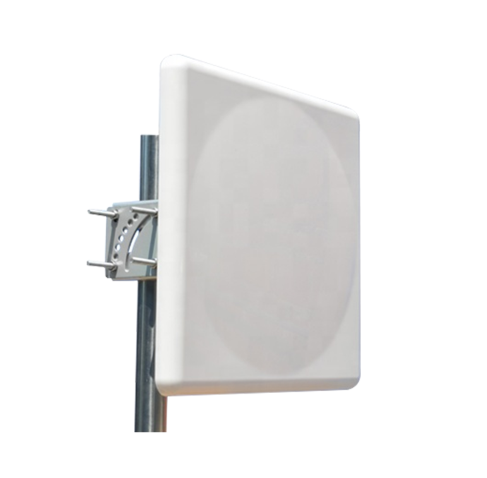

MIMO panel antenna

MIMO Panel Antenna

What Are the Benefits of Panel Antennas?

As communication equipment, panel antennas offer multiple benefits to the users. In this section, the author would list what the panel antennas benefit to you:


●High gain: Panel antennas have a high gain, which means that they can amplify the signal strength of the transmitted signal. This allows for better signal quality and longer transmission ranges.


●Low interference: Panel antennas are designed to minimize interference from other signals in the surrounding environment. This is achieved by using directional beams that can be steered away from sources of interference.


●Easy installation: Panel antennas are relatively easy to install and can be mounted on walls, poles, or other structures. They are also lightweight and compact, which makes them ideal for use in a variety of environments.


●Cost-effective: Panel antennas are generally more affordable than other types of antennas, such as parabolic dish antennas. This makes them an attractive option for businesses and organizations looking to deploy wireless communication networks on a budget.

Are Panel Antennas Directional?

Yes, most panel antennas are directional antennas. Generally speaking, as the panel antenna, the wifi panel antenna has a stronger signal than the omni antenna. In other words, panel antenna broadcasts are stronger and can be installed on the wall or ceiling.

Are WiFi Antennas Worth it?

It is worth to invest WIFI antennas. A variety of WiFi antennas are available in the market, so you need to choose the wifi antennas, based on your specific needs and circumstances.


All in all, the panel antenna is one of the crucial communication equipment in the current circumstance that requires high-speed network speed. And, to meet the various environments and network requirements, the panel antenna has developed into many models. If you want to improve the network in your office or house, you need to consult the flat panel antenna manufacturer to get the right one.
