Freq.: 865-880 MHz
Gain: 6 dBi
VSWR: ≤1.5
HPBWH: 360°
HPBWV: 35°
Polarization: Vertical/Linear
Xiang Jia Sheng Technology designs and manufactures LoRa omnidirectional fiberglass antennas. The 868MHz 6dBi omnidirectional fiberglass antenna can be used in the LoRaWAN and Helium projects, and is one of the components that play an important role in IOT.

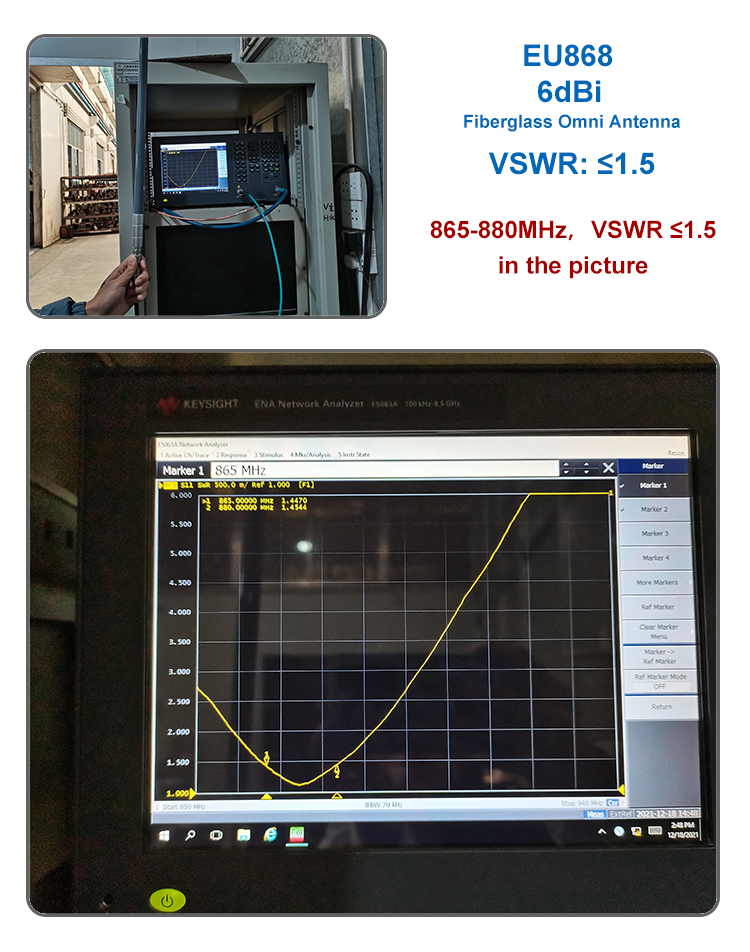

It has excellent VSWR performance, ensuring VSWR below 1.5 in the 865-880MHz band, and has higher signal radiation efficiency than commercially available VSWR performance below 2:1.
The antenna design is lightweight and easy to install.

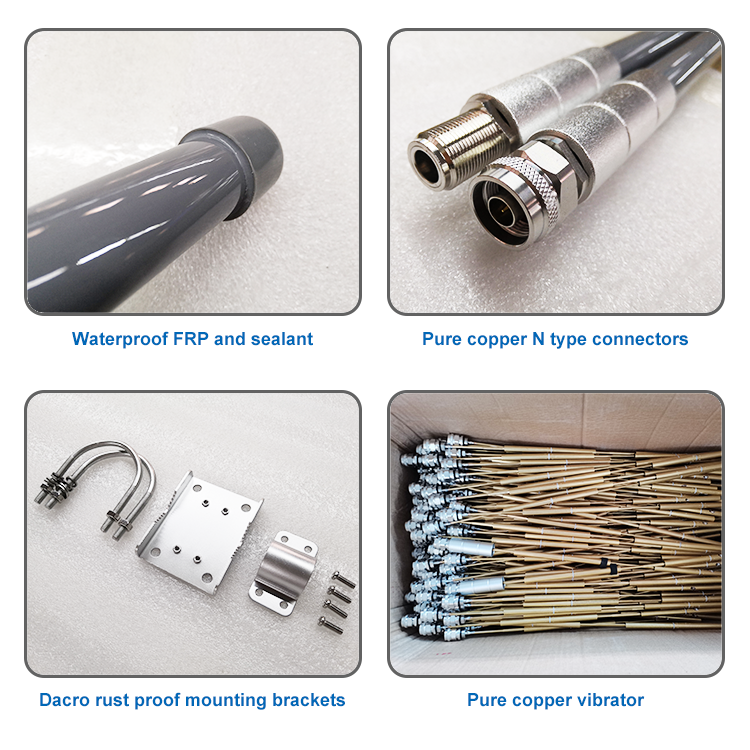

XJS is equipped with high-quality Dacro mounting brackets, better quality than most manufacturers on the market, which makes the antenna last longer.
For more antennas of different frequencies, please contact WhatsApp: +86 13824808100
|
Model |
XJS-SP-O868-6V |
|
Frequency Range |
865-880MHz |
|
Gain |
6 dBi |
|
Horizontal Beamwidth(3dB) |
360° |
|
Vertical Beamwidth(3dB) |
35° |
|
Polarization |
Vertical/Linear |
|
VSWR |
≤ 1.5 |
|
Impedance |
50 Ω |
|
Connector |
N-Female or N-Male |
|
Max. Power |
100 W |
|
Lightning Protection |
DC Ground |
|
Dimension |
Φ 20 x 550 mm |
|
Weight |
0.25 kg |
|
Operating Temperature |
-40℃～+65℃ |
|
Wind Loading |
210 km/h |
|
Mounting |
Pole Mount |
