868 MHz 4 dBi LoRa Fiberglass Omni Antenna

Model: XJS-SP-O868-4V

Freq.: 865-880 MHz

Gain: 4 dBi

VSWR: ≤1.5

HPBWH: 360°

HPBWV: 58°

Polarization: Vertical/Linear

  • High gian and low VSWR
  • Good quality materials
Contact Us

868 MHz 4 dBi LoRa Fiberglass Omni Antenna

Xiang Jia Sheng Technology designs and manufactures LoRa omnidirectional fiberglass antennas. The 868MHz 4dBi omnidirectional fiberglass antenna can be used in the LoRaWAN and Helium projects, and is one of the components that play an important role in IOT.

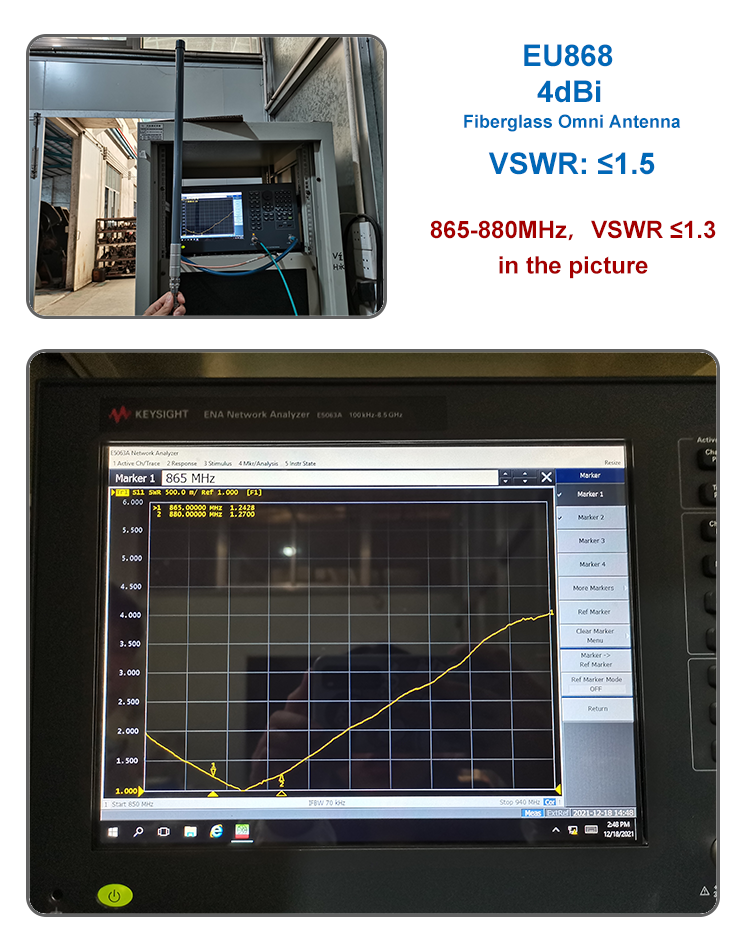

It has excellent VSWR performance, ensuring VSWR below 1.5 in the 865-880MHz band, and has higher signal radiation efficiency than commercially available VSWR performance below 2:1.


The antenna design is lightweight and easy to install.


XJS is equipped with high-quality Dacro mounting brackets, better quality than most manufacturers on the market, which makes the antenna last longer.

For more antennas of different frequencies, please contact WhatsApp: +86 13824808100

Model

XJS-SP-O868-4V

Frequency Range

865-880 MHz

Gain

4 dBi

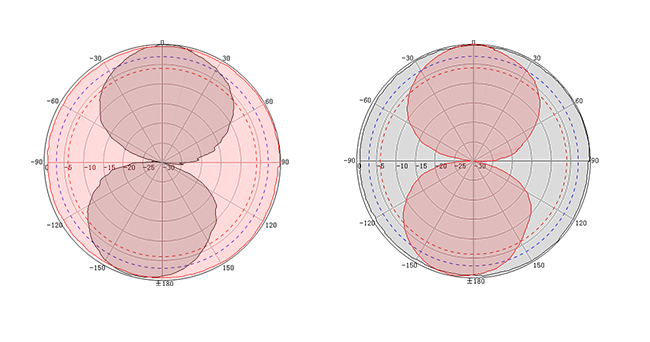

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(3dB)

58°

Polarization

Vertical/Linear

VSWR

≤ 1.5

Impedance

50 Ω

Connector

N-Female or N-Male

Max. Power

100 W

Lightning Protection

DC Ground

Dimension

Φ 20 x 520 mm

Weight

0.25 kg

Operating Temperature

-40℃~+65℃

Wind Loading

210 km/h

Mounting

Pole Mount






UK/EU868
868MHz applications
Helium hotspot, RFID, WLAN, ISM BAND
LoRaWAN, IOT applications
