Freq.: 698-3800 MHz
Gain: 30 dBi
VSWR: ≤1.8
HPBWH: 15°
HPBWv: 15°
Polarization: Vertical+Vertical

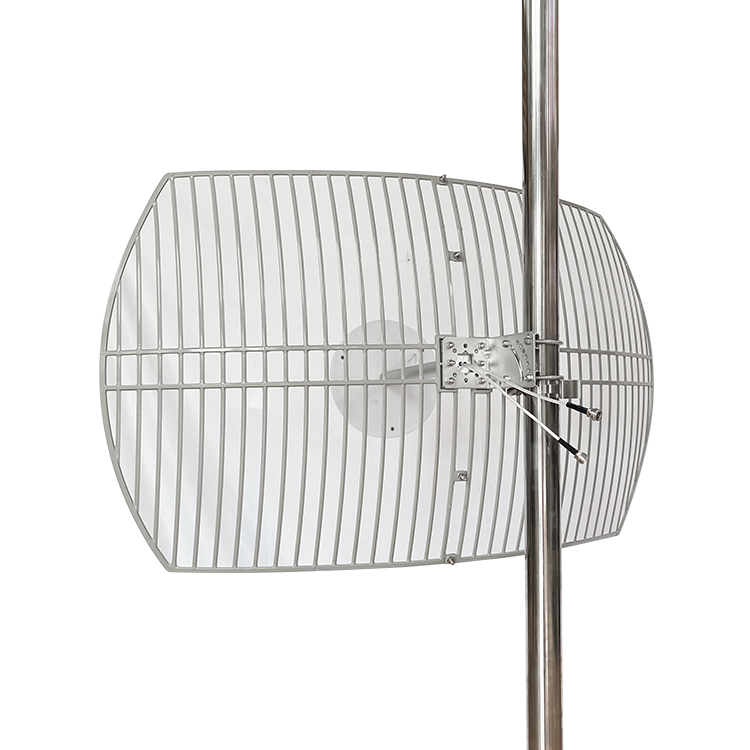

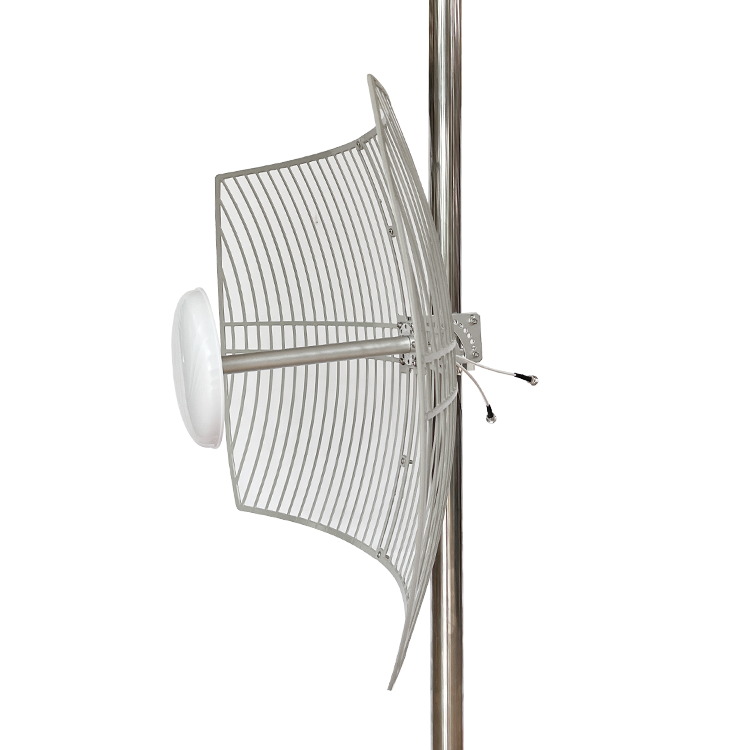

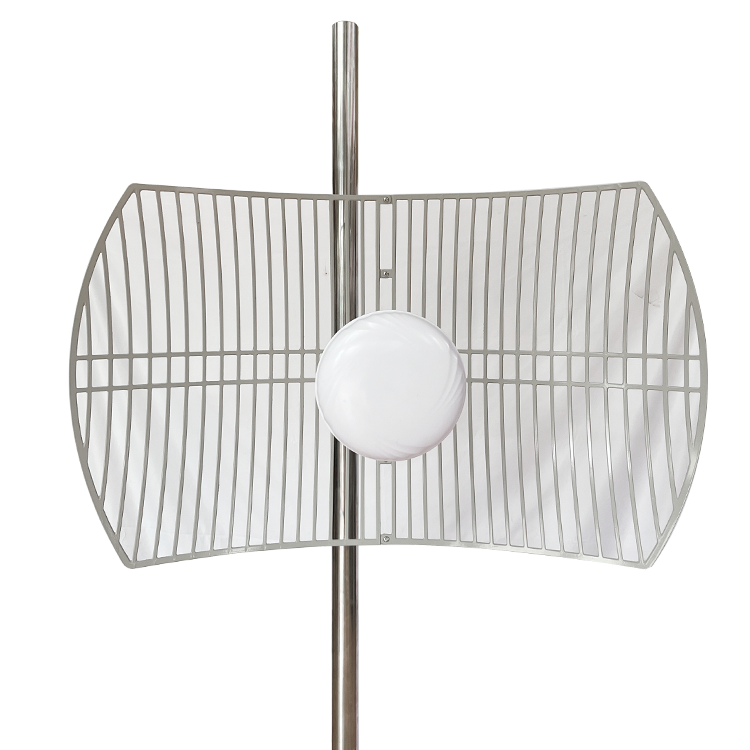

The model TDG-0638-30 is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(30dBi) and high front to back ratio. It works in the frequency range of 698-3800MHz and is suitable for outdoor remote point-to-point(PTP) 3G/4G LTE/5G signal transmission to solve the problem of remote signal reception or transmission.
This antenna uses pure copper N-Female connector to reduce signal transmission loss and ensure high performance of the antenna.
In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.
Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.
A 1700-3800 MHz dish antenna is a specialized type of directional antenna designed to operate within the frequency range of 1700 MHz to 3800 MHz. This 1700-3800 MHz dish antenna is specially designed with 15°HPBWH and 15°HPBWv. Therefore, the 1700-3800 MHz dish antenna is able to boost about 30 dBi sign strength in the vertical direction.
Three versions are available in this 1700-3800 mhz dish antenna. The 698-960 MHz version has the gain of 14±2 dBi. The 1710-2700 MHz has the gain of 24±2 dBi. The 3300-3800 MHz version has the gain of 30 dBi.
With its wide gain selections and great design, the 1700-3800 mhz dish antenna can be used in many applications. It can be used in 4G LTE, SOFDMA, WiMAX 7 Mobile WiMAX, Wireless Internet Provider "cell" sites, 3.5 GHz Band Applications, etc.
|
Model |
TDG-0638-30 |
||
|
Frequency Range |
698-960 MHz |
1710-2700 MHz |
3300-3800 MHz |
|
Gain |
14±2 dBi |
24±2 dBi |
30 dBi |
|
Horizontal Beamwidth(3dB) |
30°±10° |
25°±5° |
15°±6° |
|
Vertical Beamwidth(3dB) |
30°±10° |
25°±5° |
15°±6° |
|
Polarization |
Vertical |
||
|
F/B Ratio |
≥ 15 dB |
||
|
VSWR |
≤ 1.8 |
||
|
Impedance |
50 Ω |
||
|
Connector |
2 x N-Female |
||
|
Max. Power |
50 W |
||
|
Lightning Protection |
DC Ground |
||
|
Dimension |
600*900 mm |
||
|
Weight |
2 kg |
||
|
Operating Temperature |
-35℃～+50℃ |
||
|
Wind Loading |
140 km/h |
||
|
Mounting |
Pole Mount |
||
