5GHz 19 dBi 120 Degree MIMO Sector Antenna

Model: XJS-DP-S4865-19X-120

Freq.: 4800-6500 MHz

Gain: 19 dBi

VSWR: ≤1.8

HPBWH: 120°

HPBWv: 4°

Polarization: ±45°

•MIMO applications
•WiMAX, WISP, WiFi, mobile communication and cell-sites
•Security monitor
•Point-to-multipoint applications
Contact Us

5GHz 19 dBi 120 Degree MIMO Sector Antenna

Xiang Jia Sheng Technology designs and manufactures 5GHz 120-degree sector antennas.

The antenna supports frequencies in the 4800-6500MHz range and has excellent VSWR performance.

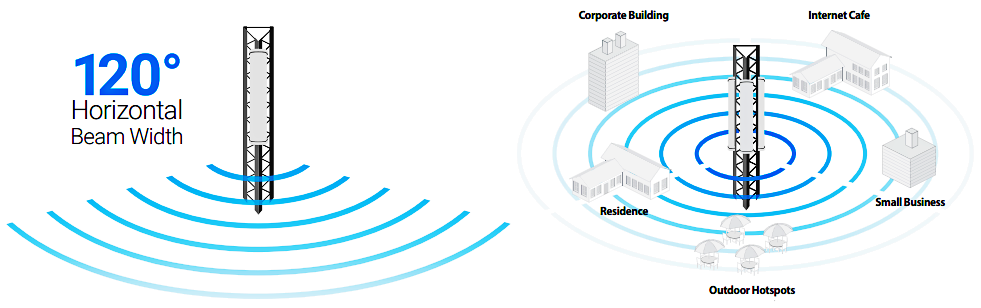

XJS Technology's 5GHz 120-degree antenna calculates the Angle with a 3dB beamwidth, which is wider than the 120-degree antenna calculated with a 6dB beamwidth on the market. Using this antenna, the 5GHz WiFi has a much wider signal range.

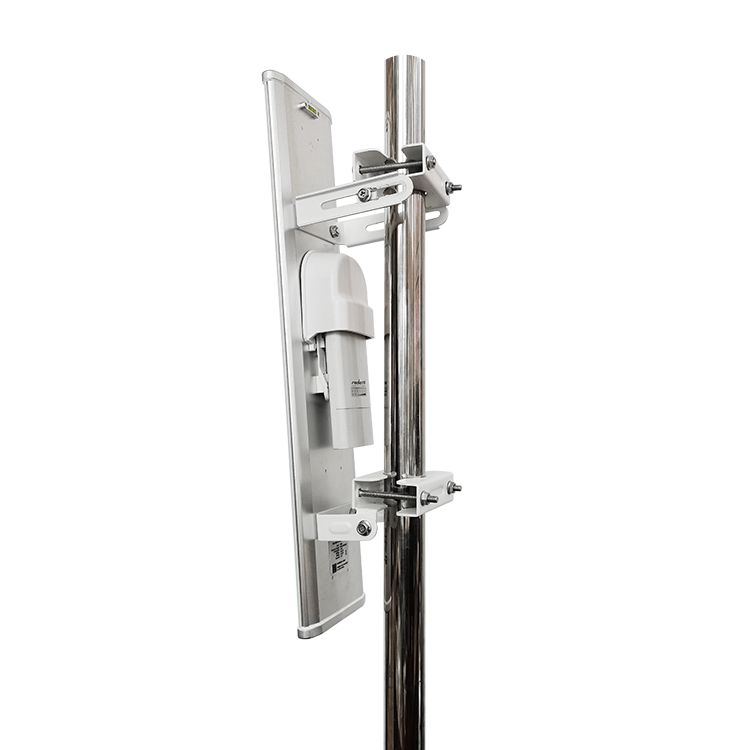

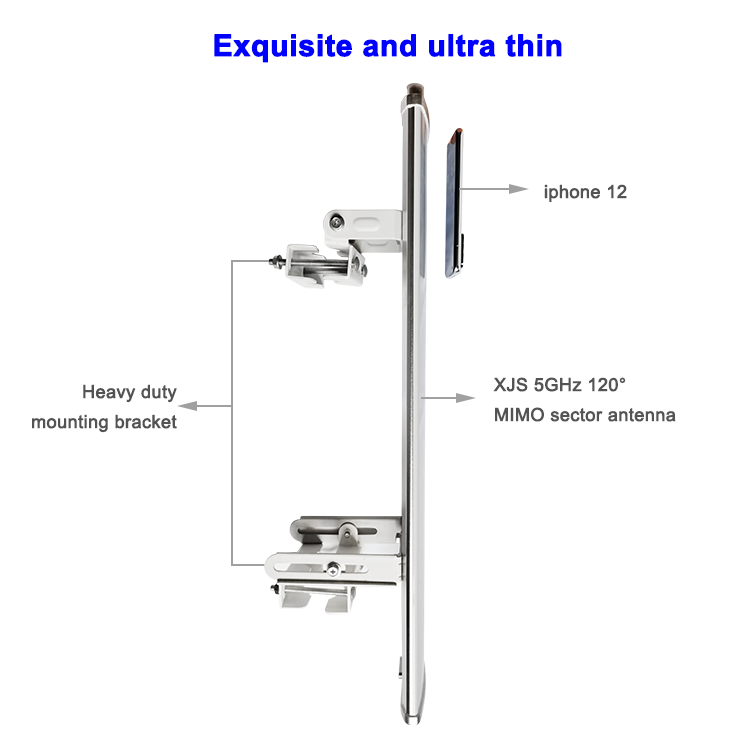

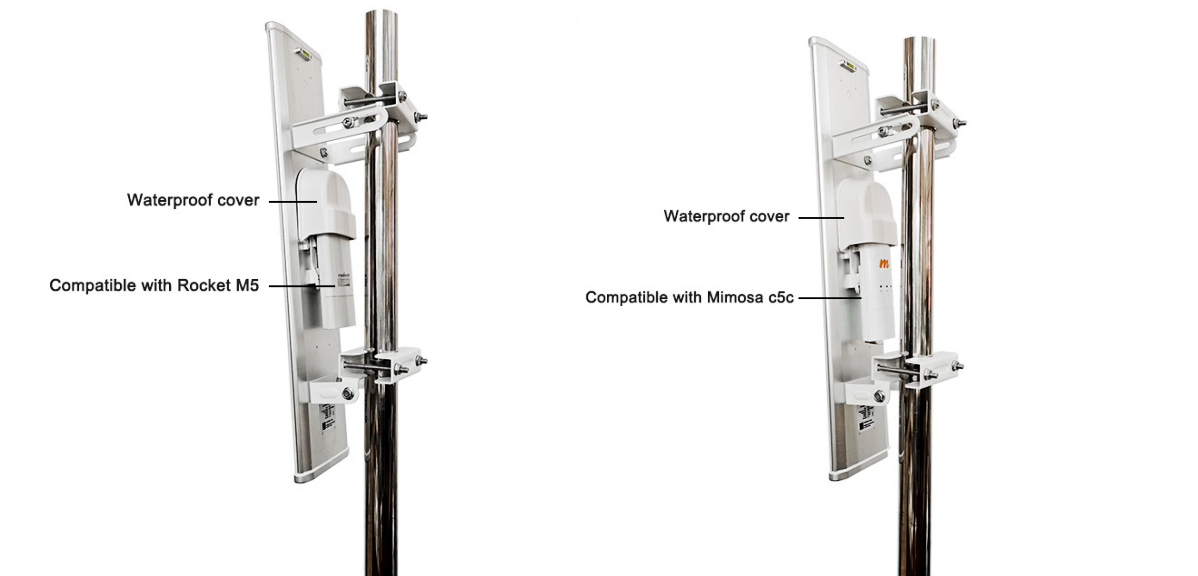

The antenna is equipped with a strong and reliable mounting bracket. XJS Technology has refined the details of mounting brackets to create a more user-friendly design.

All hardware accessories of the antenna are made of high quality materials, and do reliable anti-corrosion treatment to extend the service life of the antenna.



120 Degree Sector Antenna

120 Degree Sector Antenna



Model

XJS-DP-S4865-19X-120

Frequency Range

4800 - 6500 MHz

Gain

19 dBi

Horizontal Beamwidth(3dB)

120°

Vertical Beamwidth(3dB)

Polarization

± 45°

F/B Ratio

≥ 26 dB

VSWR

≤ 1.8

Impedance

50 Ω

Connector

2 x SMA

Max. Power

50 W

Lightning Protection

DC Ground

Dimension

700 x 157 x 30 mm

Weight

3.8 kg

Operating Temperature

-40℃~+65℃

Wind Loading

210 km/h

Mounting

Pole Mount

  • 4.9/5.1/5.3/5.4/5.8/6.1/6.4 GHz Wireless LAN systems
  • IEEE 802.11a/n applications
  • MIMO applications WiMAX, WISP, WiFi, mobile communication and cell-sites
  • Security monitor
  • Point-to-multipoint applications
