Freq.: 698-4200 MHz
Gain: 5 dBi
VSWR: ≤1.5
HPBWH: 360°
HPBWv: 35°
Polarization: Vertical
Xiang Jia Sheng Technology research and produce the 4G LTE omnidirectional Marine antenna. The supported frequency ranges are 698-960MHz, 1710-2700MHz and 3200-4200MHz. It has a gain of 5dBi.

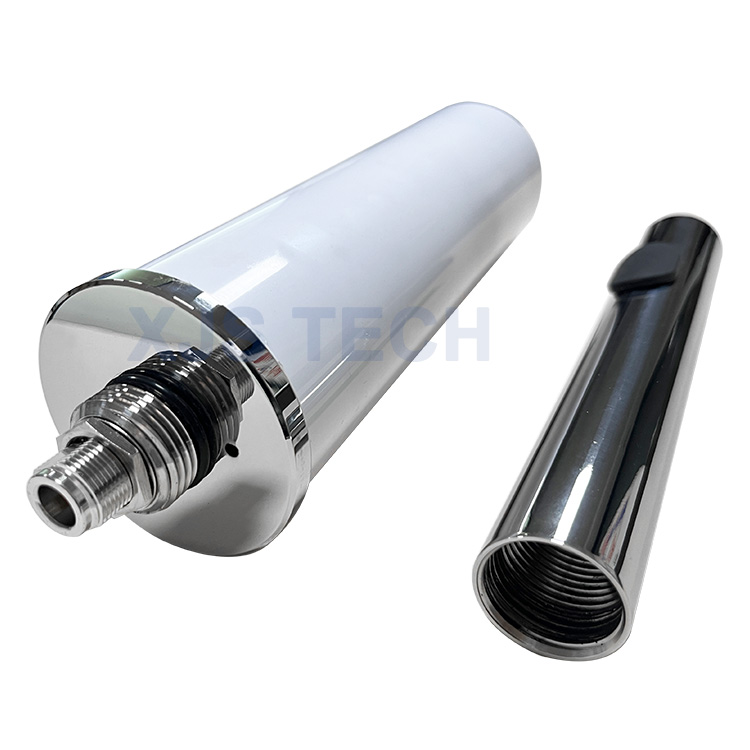

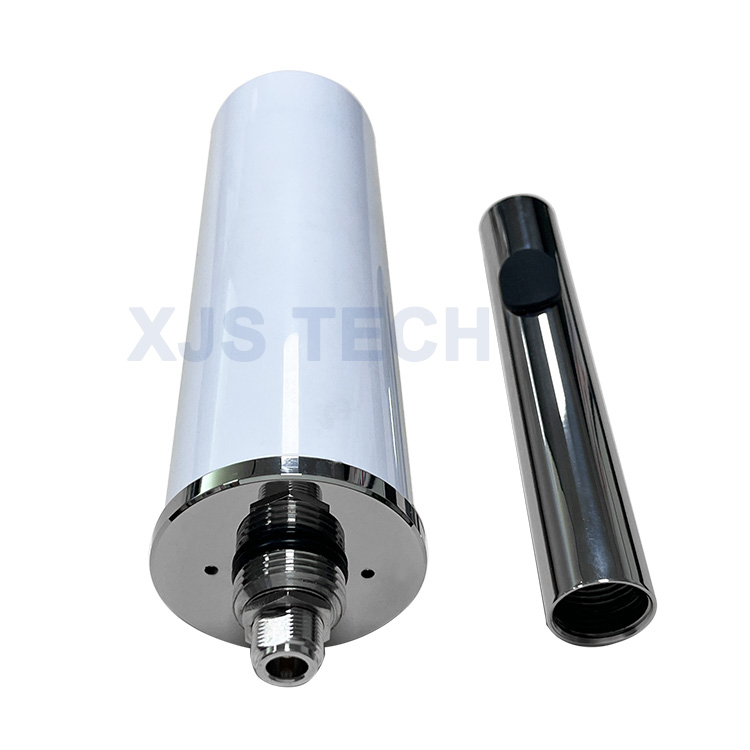

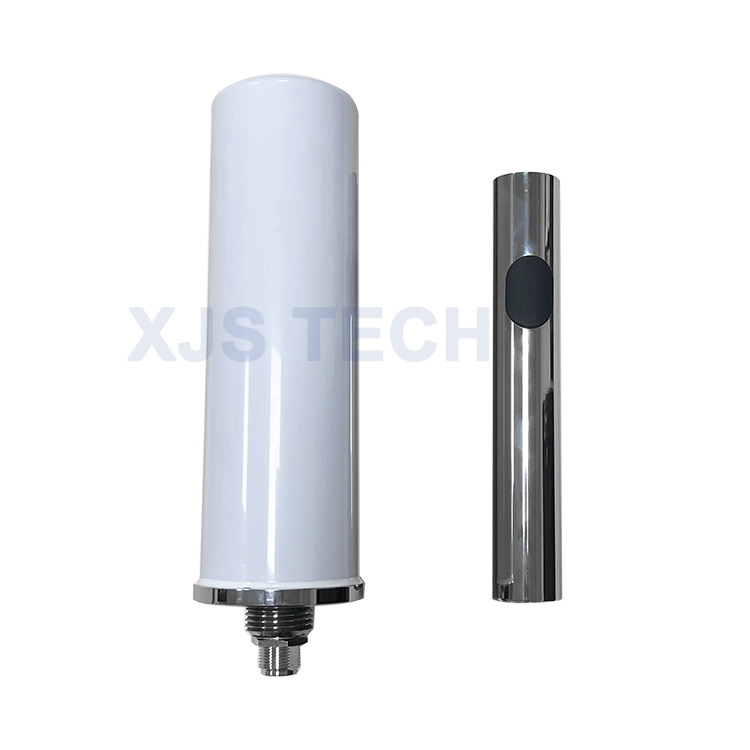

Equipped with a stainless steel base and stainless steel pole, the antenna provides a reliable solution for offshore networks such as 5G/4G LTE/3G and GSM. It can receive signals from multiple directions at the same time, which helps maintain continuous and reliable signal reception.
The high-quality stainless steel components are resistant to salt spray corrosion as well as a variety of effects such as sun exposure and heavy rain, so the antenna can perform well in harsh Marine environments and extreme weather conditions.
|
Model |
XJS-SP-O0642-5V-MAR |
|
|
Frequency Range |
698 - 420 MHz |
|
|
Gain |
5 dBi |
|
|
Horizontal Beamwidth(3dB) |
360° |
|
|
Vertical Beamwidth(3dB) |
35° |
|
|
Polarization |
Vertical |
|
|
VSWR |
≤ 1.7 |
|
|
Impedance |
50 Ω |
|
|
Connector |
N-Female or Customized |
|
|
Max. Power |
50 W |
|
|
Lightning Protection |
DC Ground |
|
|
Dimension |

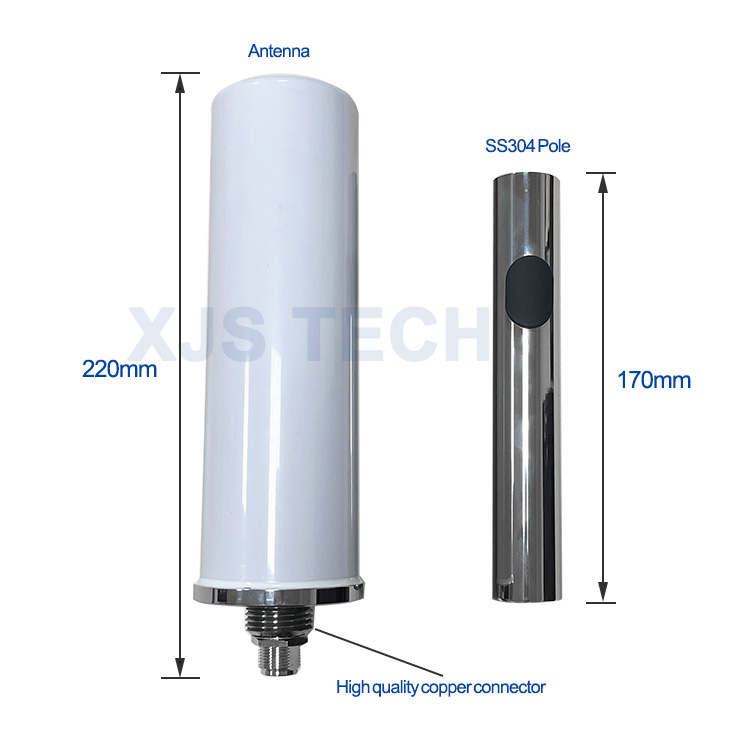

Antenna Φ 60 x 220 mm |
|
| Pole φ28*170 mm | ||
|
Weight |
0.4 kg |
|
|
Operating Temperature |
-40℃～+65℃ |
|
|
Wind Loading |
210km/h |
|
