5 GHz 13 dBi MIMO Omni Antenna

Model: XJS-DP-O5158-13HV

Freq.: 5150-5850 MHz

Gain: 13 dBi

VSWR: ≤1.5

HPBWH: 360°

HPBWV:

Polarization: Horizontal+Vertical

  • High gian and low VSWR
  • Good quality materials
Contact Us



5ghz 13dBi Omni Antenna

Introduction to 5ghz 13dBi Omni Antenna

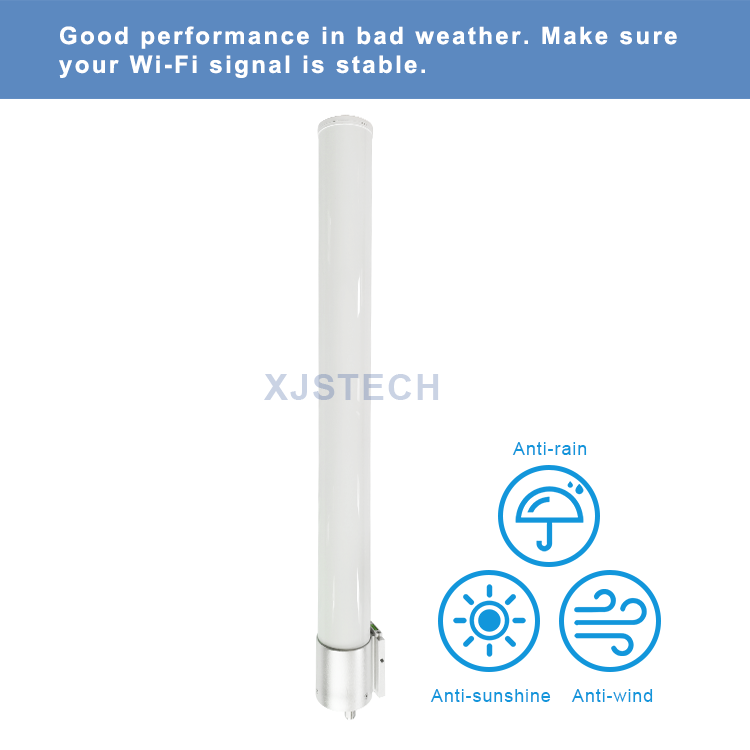

The MIMO omni antenna is a 5GHz dual-polarized omnidirectional antenna with high performance and low VSWR in the frequency range of 5150 MHZ to 5850MHz. The 13dBi's high gain allows it to receive distant signals and cover a wide enough area to solve the WiFi signal coverage problem.

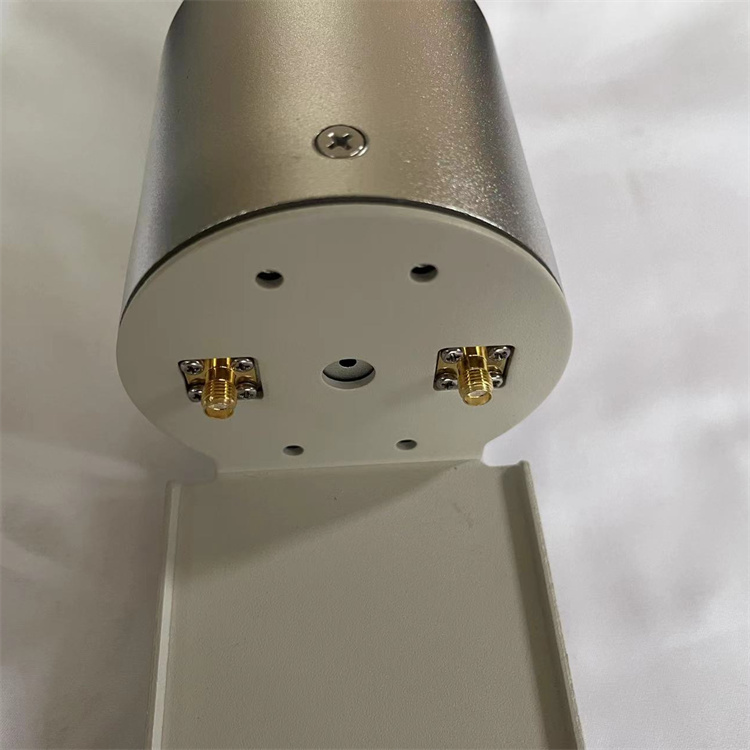

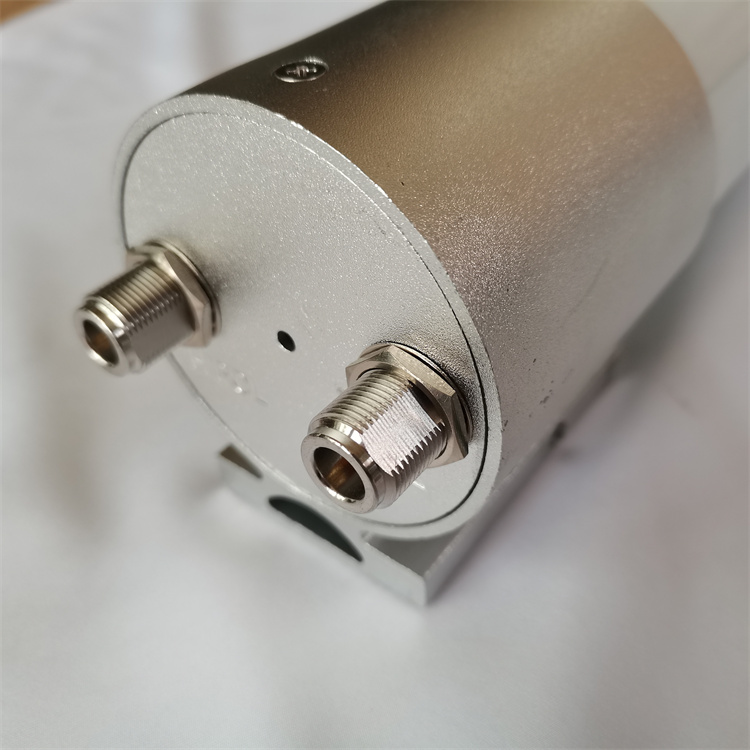

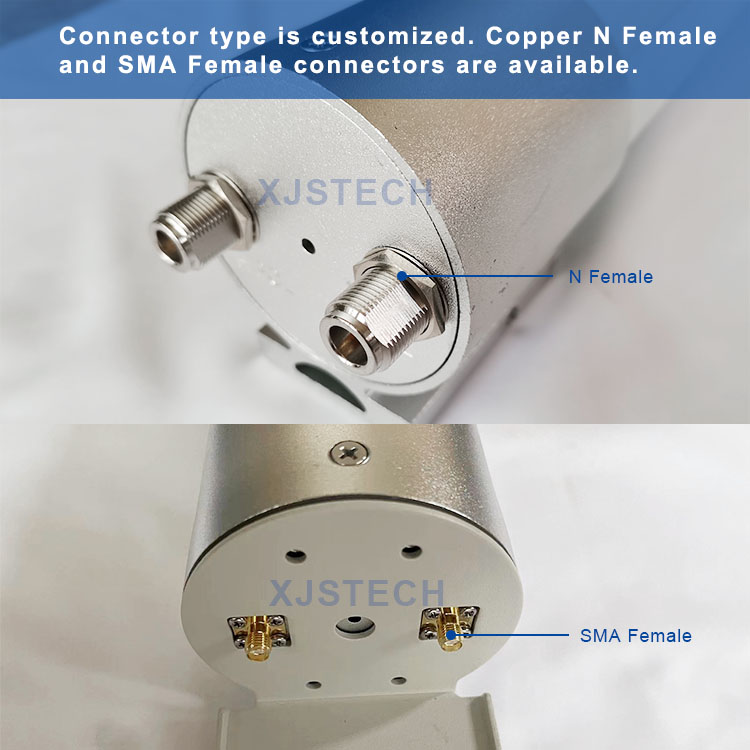

The antenna uses high quality radome and pure copper connectors. Customers can choose N-female connectors or SMA connectors as required. Over the years, this antenna with good quality, won the favor of customers at home and abroad.

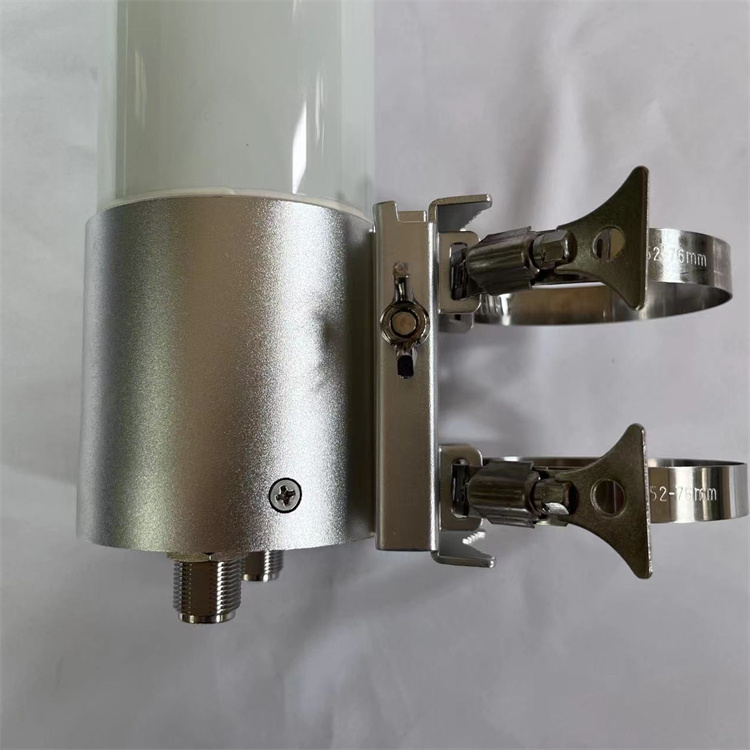

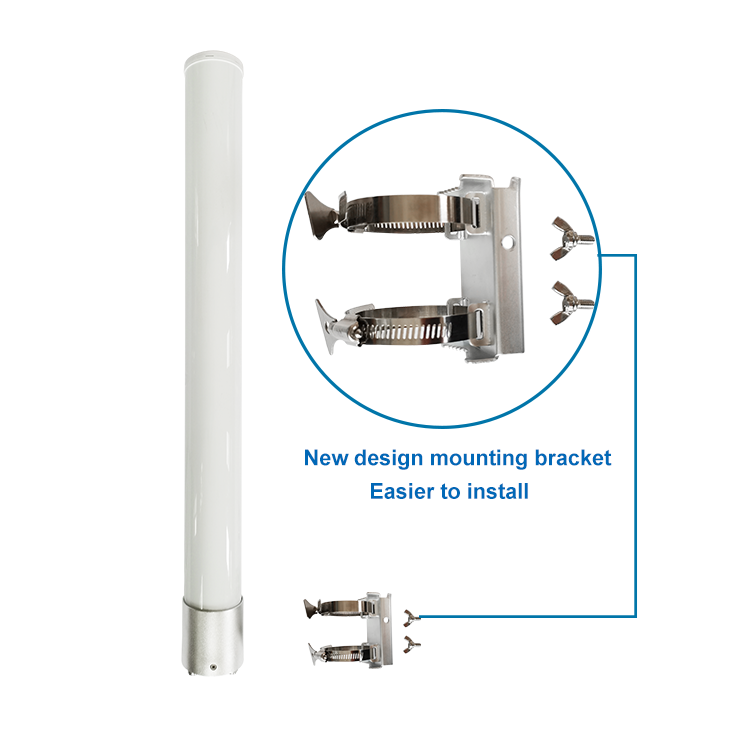

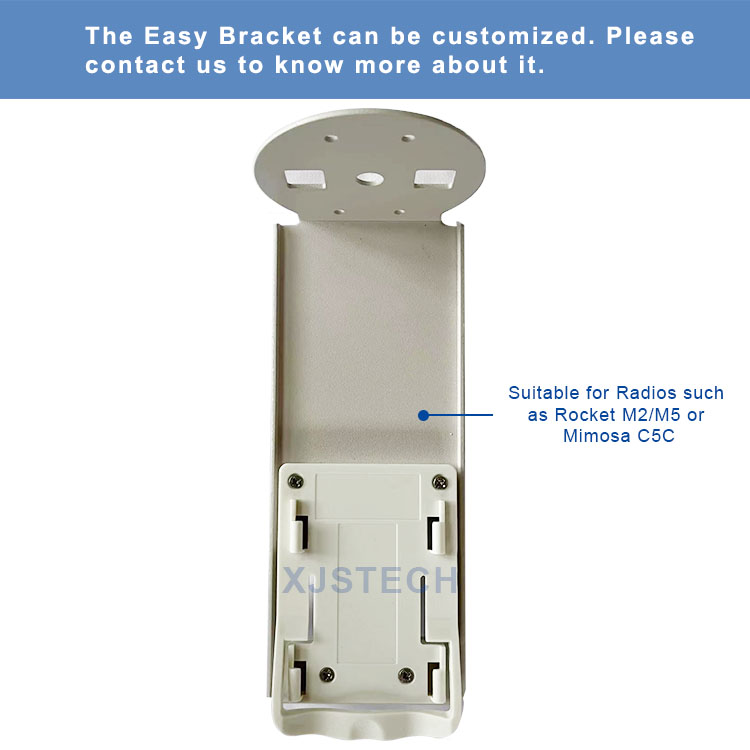

XJS Technology has unique mounting brackets that allow Ubiquiti RocketM2 radio to connect directly to antenna. In addition, XJS Technology provides a pair of low-loss cable accessories for connecting Rocket M5 to the antenna. Contact XJS staffs to purchase according to your actual needs.

5ghz 13dBi Omni Antenna

5ghz 13dBi Omni Antenna

5ghz 13dBi Omni Antenna





5ghz 13dBi Omni Antenna Supplier - XJS

XJS is a professional 5ghz 13dBi omni antenna supplier in China. Found in 2005, XJS puts its all effort into the research and development of the omni antenna and offers cutting-edge solutions in the field of communication technology.

XJS owning a state-of-the-art facility that spans over 5,000 square meters. Within these walls, more than 50 sets of production equipment hum with precision, ensuring the highest standards of quality for our products. XJS has delved deep into the intricacies of communication technology, specializing in 5G, 4G LTE, WiFi, and wireless LAN frequency bands. Therefore, XJS has become one of the great 5ghz 13dBi omni antenna manufacturers.

At the heart of XJS's enterprise lies an experienced and innovative R&D team. With XJS's independent test darkroom and a comprehensive suite of eight test equipment, XJS leaves no stone unturned in ensuring our products perform at their peak in real-world scenarios.

Model

XJS-DP-O5158-13HV

Frequency Range

5150 - 5850 MHz

Gain

13 dBi

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(3dB)

Polarization

Horizontal+Vertical

VSWR

≤ 1.5

Impedance

50 Ω

Connector

N-Female or SMA

Max. Power

100 W

Lightning Protection

DC Ground

Dimension

Φ 75 x 765 mm

Weight

2 kg

Operating Temperature

-40℃~+65℃

Wind Loading

170 km/h

Mounting

Pole Mount

Campus and Academic Facilities

High-power, long-distance point-to-multipoint applications

Municipal and Government Facilities

Wireless Internet Providers and ISPs

Public safety

Security monitor
