Omni Antennas

4.8 - 6.5 GHz 15 dBi MIMO Omni Antenna

Model: XJS-DP-O4865-15HV
Contact Us

Model

XJS-DP-O4865-15HV

Frequency Range

4800 - 6500 MHz

Gain

15 dBi

Horizontal Beamwidth(3dB)

360°

Vertical Beamwidth(3dB)

Polarization

Horizontal+Vertical

VSWR

≤ 1.5

Isolation

≥ 28 dB

Impedance

50 Ω

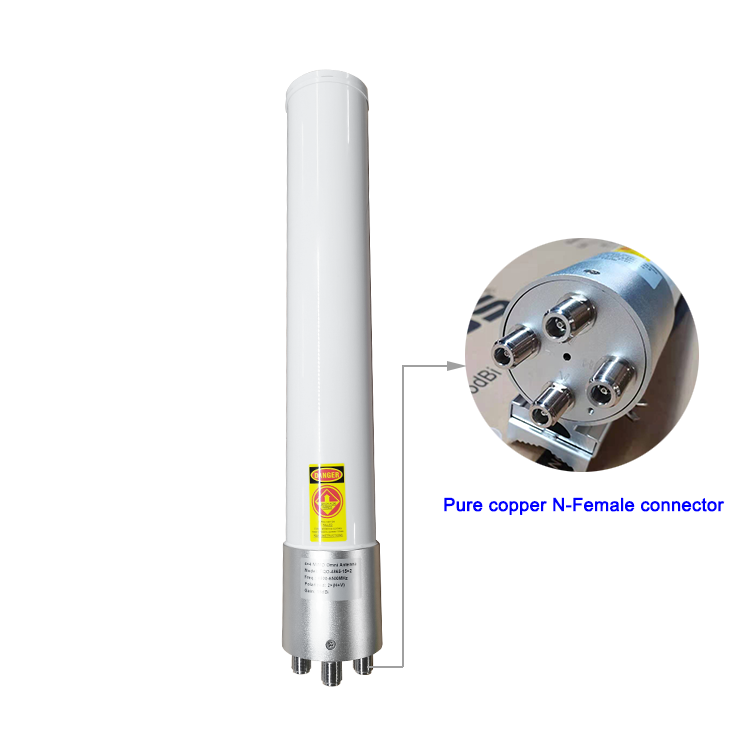

Connector

4 x N-Female or 4 x SMA

Max. Power

50 W

Lightning Protection

DC Ground

Dimension

Φ 75 x 500 mm

Weight

1.8 kg

Operating Temperature

-40℃~+65℃

Wind Loading

170 km/h

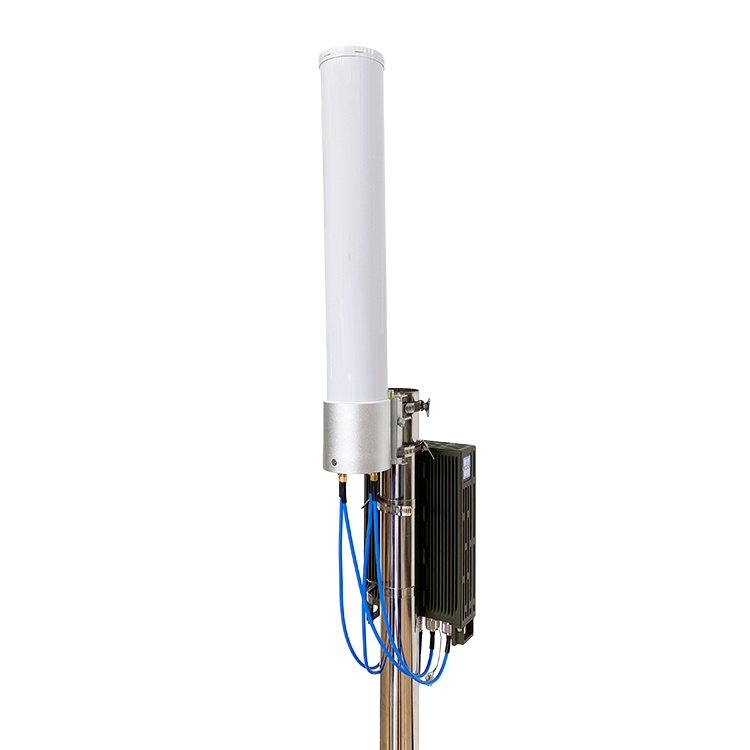

Mounting

Pole Mount

Campus and Academic Facilities

High-power, long-distance point-to-multipoint applications

Municipal and Government Facilities

Wireless Internet Providers and ISPs

Public safety Security monitor
