3200 - 4200 MHz 24 dBi MIMO Dish Antenna

Model: XJS-DP-D3242-24HV

Freq.: 3200-4200 MHz

Gain: 24 dBi

VSWR: ≤1.8

HPBWH:

HPBWv:

Polarization: Horizontal+Vertical

  • Innovative mounting accessories for easier installation
  • High F/B ratio
  • 5G application
Contact Us

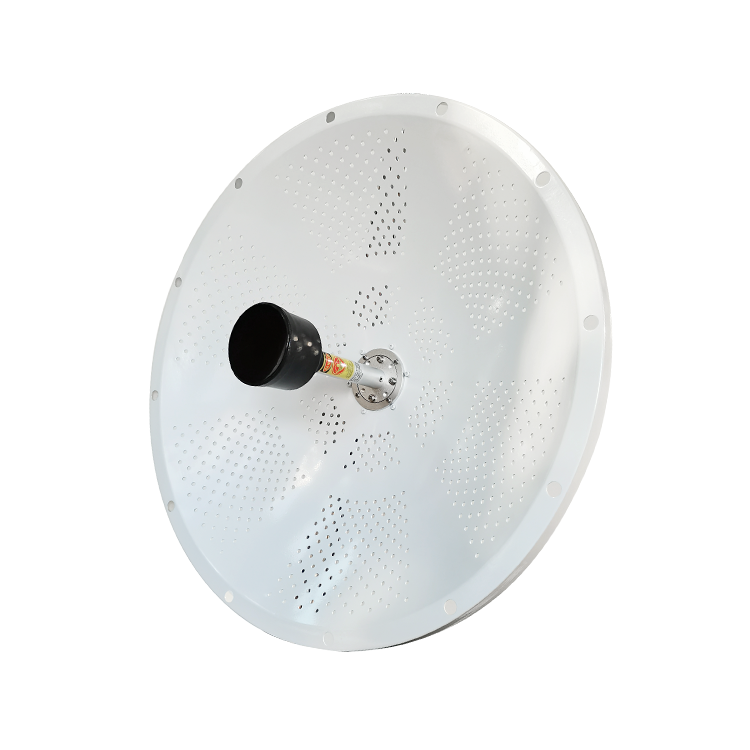

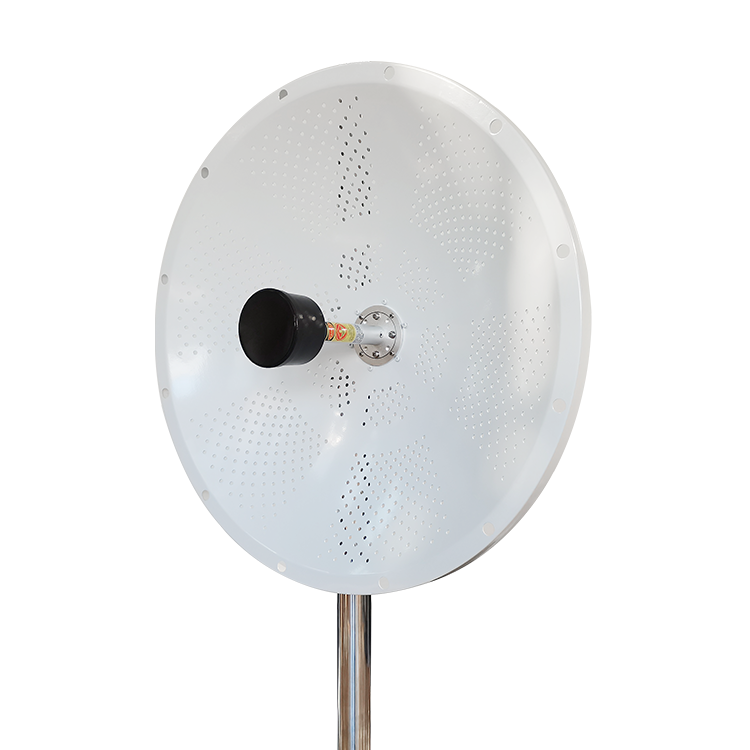

The model XJS-DP-D3242-24HV is a popular MIMO parabolic antenna of XJS technology. It has the characteristics of high gain(24dBi) and high front to back ratio. It can maintain high performance in the frequency range of 3200-4200MHz and is suitable for outdoor remote point-to-point(PTP) 5G signal transmission to solve the problem of remote signal reception or transmission. XJS technology uses 1.5mm thick paraboloid, sufficient material, make the antenna durable.

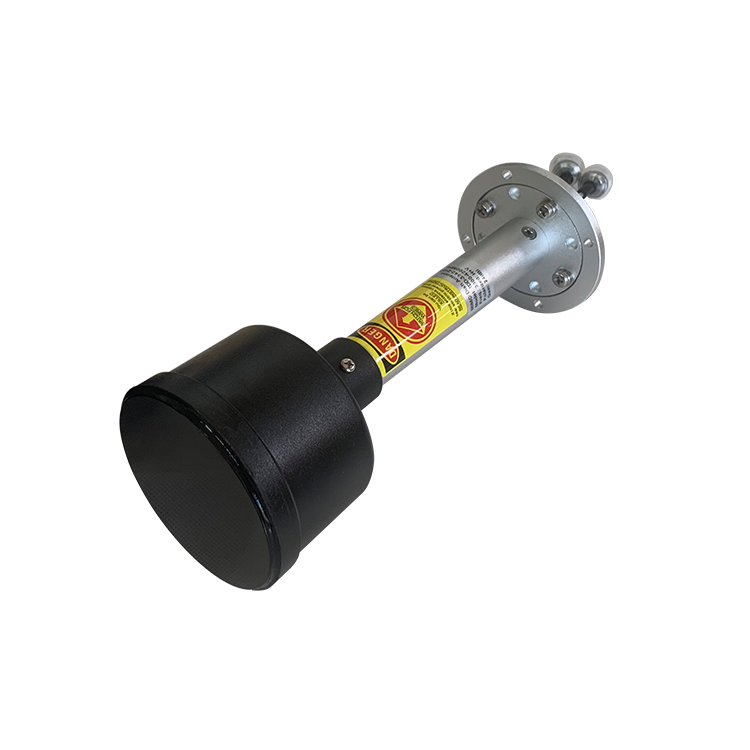

This antenna uses pure copper N-Female connector and is equipped with two low-loss RG141 jumper cables to reduce signal transmission loss and ensure high performance of the antenna.

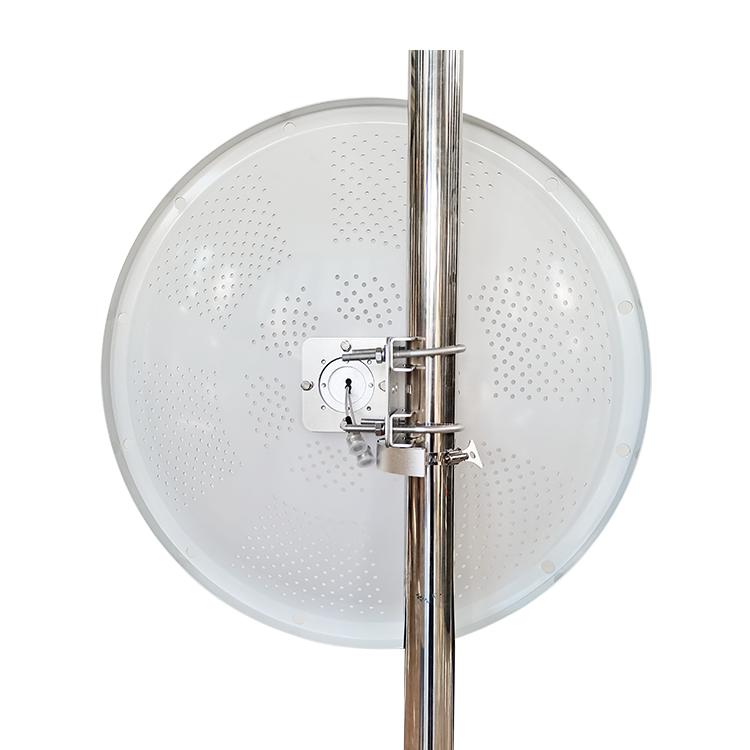

In terms of installation details, XJS technology has made more humanistic consideration for parts, making installation faster and more convenient, and improving users' experience of use.

Over the years, with good antenna quality and professional service, XJS Technology has been favored by customers.

Model

XJS-DP-D3242-24HV

Frequency Range

3200 - 4200 MHz

Gain

24 dBi

Horizontal Beamwidth(3dB)

Vertical Beamwidth(3dB)

Polarization

H+V

F/B Ratio

≥ 28 dB

VSWR

≤ 1.8

Impedance

50 Ω

Connector

2 x N-Female

Max. Power

50 W

Lightning Protection

DC Ground

Dimension

Dia.600 mm

Weight

5 kg

Operating Temperature

-40℃~+65℃

Wind Loading

170 km/h

Mounting

Pole Mount



  • SOFDMA
  • WiMAX 7 Mobile WiMAX
  • Wireless Internet Provider "cell" sites
  • 3.5 GHz Band Applications
  • Wireless LAN systems & IEEE 802.16e Applications
