Freq.: 2400-2500 MHz/5150-5850 MHz
Gain: 12/14 dBi
VSWR: ≤1.5
HPBWH: 68°/15°
HPBWv: 65°/15°
Polarization: Vertical/H+V
The XJS-DP-P2458-14HV is a high performance multi-band directional panel WiFi antenna suitable for indoor and outdoor applications in the 2.4GHz (2400-2500 MHz) and 5.1-5.8 GHz (5150-5850 MHz) band. The Multi-band design of this antenna eliminates the need to purchase different antennas for each frequency. This simplifies installations since the same antenna can be used for a wide array of wireless applications.
The XJS-DP-P2458-14HV has a high gain of 14dBi and is suitable for widespread use in daily life. Meet user requirements for WiFi, MIMO and other applications.
XJS-DP-P2458-14HV is actually two antennas in one. A dual 2.4 GHz antenna and a dual 5 GHz antenna are coupled to a single feed. Since many dual-band 802.11a/b/g radios share a single antenna, the XJS-DP-P2458-14HV can split these signals so that two separate internal 2.4 GHz and 5 GHz antennas can be used to improve performance. XJS-DP-P2458-14HV can also receive separate 2.4 GHz and 5 GHz signals and combine them into a single feed.
|
Model |
XJS-DP-P2458-14HV |
|
|
Frequency Range |
2400 - 2500 MHz |
5150 – 5850 MHz |
|
Gain |
12 dBi |
14 dBi |
|
Horizontal Beamwidth(3dB) |
68° |
15° |
|
Vertical Beamwidth(3dB) |
65° |
15° |
|
Polarization |
Horizontal+Vertical or Vertical |
|
|
VSWR |
≤ 1.5 |
|
|
Impedance |
50 Ω |
|
|
Connector |
N-Female |
|
|
Max. Power |
100 W |
|
|
Lightning Protection |
DC Ground |
|
|

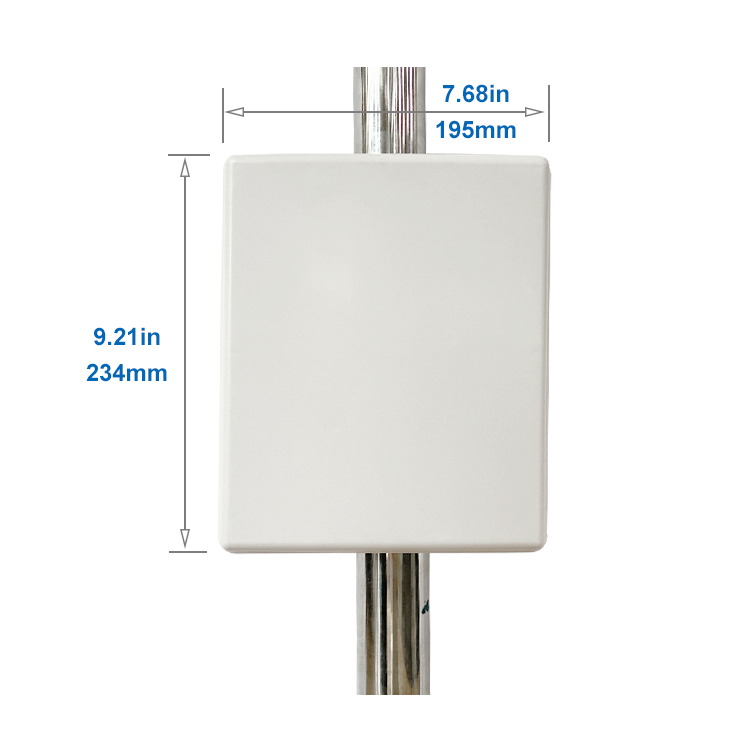

Dimension |
234 x 194 x 35 mm |
|
|
Weight |
1.6 kg |
|
|
Operating Temperature |
-40℃～+60℃ |
|
|
Wind Loading |
210 km/h |
|
|

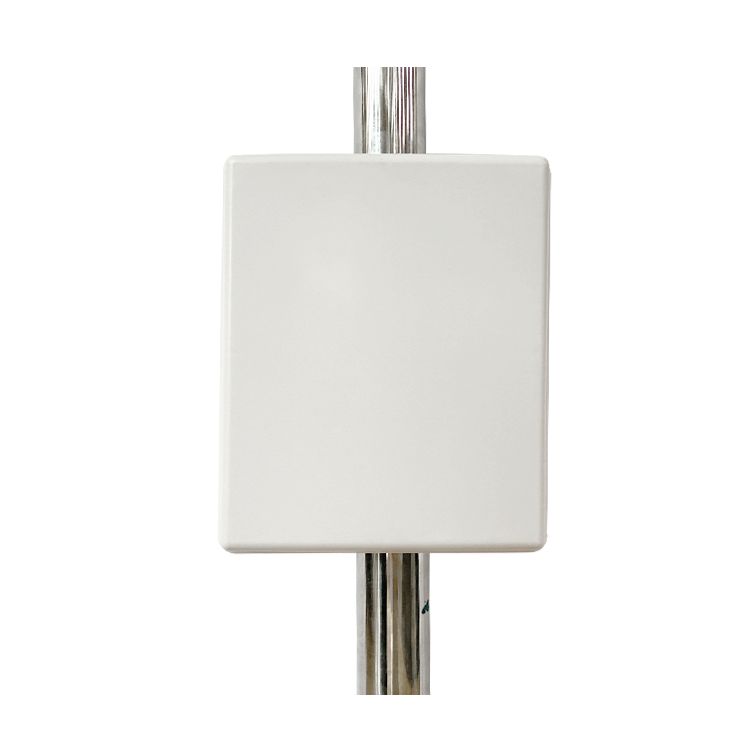

Mounting |
Pole Mount |
|
